ITEM Description
Longspan Racking Steel Garage Shelving Industrial 5 ton/bay capacity - 1 BAY


Price: $137 - $315
Product Description:

* You are buying 1 bay of Longspan Racking

* 2 end frames plus 6 beams

* Choose the size you require




Watch this item.

BUY WITH CONFIDENCE - OVER 10,000 POSITIVE FEEDBACKS !!

  • Overview
  • Freight
  • Diagrams
  • Accessories
  • Item List
  • About Us
  • Payment
  • Returns
  • Contact Us

THIS LISTING IS FOR 1 BAY OF RACKING
- Comprising of 2 end frames and 6 beams


PLEASE NOTE:

This racking is Industrial Quality
(We are a professional racking company and only sell quality certified racking)

Our Frames are 1.8mm thick steel with 60mm x 40mm Profile
with a massive 5.0 ton maximum loading / bay
(Not 1.5 ton - like others listed here for sale)

Beams are 1.5mm and 2.0mm thick steel
  (NOT the light duty 0.8mm or 1.0mm that you
  buy from Bunnings or similar listings on ebay)


  PLEASE COMPARE !!


  Longspan Frames



  Longspan Beams


  You are buying quality racking
This longspan racking is a smaller version of our heavy duty
(certified to the new Australian Standard AS4084-2012) pallet racking.
Frames bolt together (exactly the same as pallet racking)
Beams are stepped ('P' profile) - so your shelf will sit flush with the beam


  Choose the Height, Width and Length that you require.

OPTIONS:
Frame Heights: 1800mm,  2200mmm,  2500mmm  or  3600mmm
Frame Depths: 450mm,  600mm  or  900mm
Beam Lengths: 900mm, 1200mm, 1500mm, 1800mm, 2100mm, 2400mm or 2700mm




  This example has 2500mm High x 600mm Deep Frames and 1800mm Long Beams
    * to calculate the total length of your racking bay - just add 130mm to your beam length
In the example above - overall length is 1800mm + 130mm = 1.930m

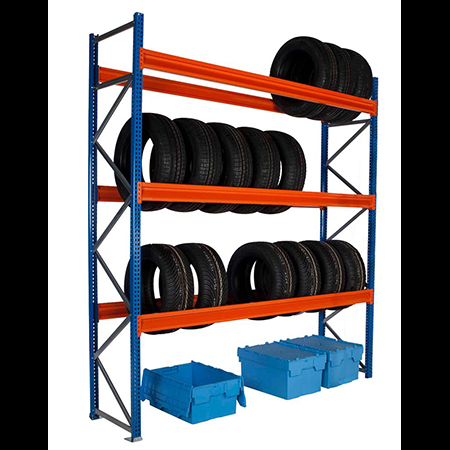

  Longspan Racking


THIS RACKING IS IDEAL FOR A MULTITUDE OF USES:

  *Archive Box Storage

  *Office Storage

  *Tyre Storage

  *Warehouse

  *Workshop

  *Garage


BUY AS MUCH RACKING AS YOU NEED !

  We have listings for 1bay, 2 bays, 3 bays, 4 bays and 5 bays listed on ebay
  CLICK HERE TO VIEW

  1

If you need any other configurations of racking
  visit our wholesalesuperstore website to view all our products

  - we can list whatever your requirements are.

1

  FREIGHT



You are welcome to pick up from our Newcastle Warehouse - No Charge

OR

We will freight to your door via courier

Full Tracking, Signature & Insurance Included


free *


FREE FREIGHT CONDITIONS

Delivery is to your door (curbside only)

Racking will be strapped to a pallet and you will need to have a means of
unloading from the courier truck, either by forklift or by cutting
the metal tie down straps on the pallet and  hand unloading

PLEASE DO NOT BUY IF THESE FREIGHT TERMS

  ARE NOT ACCEPTABLE TO YOU

We will dispatch the same day as payment is received

If you are located in an area outside our free delivery zones,

call our office on 02 4969 3922 and we'll try to find a good freight price to you.




ASSEMBLY DIAGRAMS


1800mm High Frames








2200mm High Frames








2500mm High Frames








3600mm High Frames



Accessories:

Particleboard Shelves
18mm INDUSTRIAL PARTICLEBOARD SHELVES

1
WIRE DECKING with SUPPORT BARS

Plywood Shelves
FILM FACED PLYWOOD SHELVES

The sale includes the following items:

2 X UPRIGHT FRAMES
(5 ton capacity)
(your choice of size)
2 x
Longspan Frames


6 x HEAVY DUTY BEAMS
(your choice of size)

900mm -   (600kg UDL/Level)
  1200mm -   (550kg UDL/Level)
  1500mm -   (500kg UDL/Level)
  1800mm -   (450kg UDL/Level)
  2100mm -   (350kg UDL/Level)
  2400mm -   (300kg UDL/Level)
  2700mm -   (250kg UDL/Level)


6 x
Pallet Racking 1372 x 80 Box Beam
4 x FOOT PLATES4 x
1


- All required nuts and bolts -




BUY WITH CONFIDENCE



We are an Australian wholesale distributer
The prices for our products have been checked
against all competitors and are guaranteed to be the cheapest
If you manage to find a cheaper price for a comparable product - we'll match or better it.




We are not just an online 'fly by night' seller.
 Our products can be inspected and test driven in our showroom.

We are a legitimate, well established (23 Years) Australian business.
and have been selling on ebay for over 13 years

You can be assured that we'll be around to sort out any problems
Customer service is our highest priority - our feedback speaks for itself.

Our online store is WHOLESALE SUPERSTORE.
A division of our wholesale pallet racking and storage systems company:

Wholesale Racking Australia Pty Ltd (ACN 121 224 940 - ABN 51 121 224 940)


PAYMENT OPTIONS


1/ PayPal




2/ Cheques & Money Orders:



 Please make payable to:
 "Wholesale Superstore"
and send to:
Wholesale Superstore
23 Clyde Street
Islington. 2296



3/ Credit Card Payments

To pay by Visa or Mastercard (No Surcharges)
please phone our office during business hours on 02 49693922
(This way we can process your payment over the phone
and send your goods out via courier the same day)
1


4/   CASH



(if your going to be picking up from our warehouse)

We'll even give you an extra discount !


We are so confident in our product that we offer a 30 DAY Money Back Guarantee.
If you for any reason are not happy with your purchase, just return it
and we'll refund you the full purchase price*

( *Freight NOT included !)

1

WARRANTIES

If item is faulty or DOA (dead on arrival), notify us within 7 days of receiving your item and we will

either replace or refund and pay for the return freight of the item.


All warranty claims after 7 days of receiving the item are on a 'back to base' basis, the item will need to

be returned to the store. We have not calculated any return freight costs in our selling prices. As such,

all freight costs (if applicable) are the responsibility of the buyer.

*Please do not buy if these warranty terms are unacceptable to you.


CONTACT DETAILS

1

Office/Showroom:

  Phone: 02 4969 3922
